What happens if a hydraulic pump is not properly calibrated?

Improper calibration leads to excessive heat generation, increased energy consumption by up to 20%, and premature component failure. When pressure settings are too high, you risk bursting hoses or damaging actuators. If settings are too low, the machinery won't deliver the force required for heavy lifting. This imbalance often results in unplanned downtime that costs Saudi industrial facilities an average of 18,000 SAR per hour in lost efficiency.

Hydraulic Pump Testing and Calibration: Ensuring Precision in Industrial Systems

Q: The Impact of Calibration on System Longevity

Precise pressure alignment prevents premature wear on internal gears, pistons, and vanes. When a pump is properly calibrated, it operates within its intended thermal envelope. This protects sensitive hydraulic seals from hardening or cracking due to excessive heat. We define "calibration drift" as the gradual loss of accuracy due to mechanical wear and heat. By correcting this drift early, you avoid the sudden, catastrophic failures that disrupt production timelines and inflate repair budgets.

Q: When to Schedule a Performance Test

Precision is the foundation of reliable industrial operations. At ETS, we follow Hydraulic Institute standards to ensure every unit meets its exact design intent. The hydraulic pump testing and calibration process begins by stabilizing the fluid temperature to a standard operating range, typically 50°C to 60°C. We also verify that oil cleanliness meets ISO 4406 specifications; even minor contamination can skew calibration data by 10% or more. Technicians install precision instruments including turbine flow meters and digital tachometers to capture performance data. We establish a baseline by measuring flow at zero load versus maximum rated pressure. This comparison identifies internal bypass and volumetric efficiency losses. If a pump delivers 95 L/min at 50 bar but drops to 80 L/min at 250 bar, it indicates significant wear. We then adjust pressure compensators and relief valves to match manufacturer specs before running a final 30-minute duty cycle to confirm thermal stability.

Q: Essential Tools for Accurate Calibration

Digital pressure gauges are mandatory for modern Rexroth or Parker pumps. They provide the 0.1% accuracy needed to detect micro-pulsations that analog gauges simply can't see. We use ultrasonic flow meters to ensure non-intrusive, high-accuracy readings. Additionally, infrared thermometers allow us to monitor case drain temperatures. A case drain running 10°C hotter than the main reservoir is a clear signal of internal component friction that requires immediate attention.

Q: On-Site Diagnostic Testing vs. Bench Testing

On-site testing is a fast solution for 75% of basic troubleshooting needs. However, for pumps larger than 22kW, a controlled test bench is necessary to simulate full-load conditions safely. ETS operates specialized test benches in Dammam that provide the precision required for high-stakes petrochemical and construction applications. This controlled environment eliminates external variables, ensuring your hydraulic pump testing and calibration results are 100% accurate. You can consult our technical team to determine the best testing environment for your specific machinery and minimize potential downtime. Distinguishing between acceptance and performance testing is vital for maintaining operational integrity. Acceptance testing occurs immediately after you purchase a new unit or receive a repaired one. It confirms the equipment meets your purchase specifications before it goes into service. In contrast, performance testing is a periodic health check. It ensures the pump still adheres to its original design curve. By following Hydraulic Institute testing standards, ETS technicians help Saudi industrial facilities establish a reliable baseline for every asset. Data doesn't just record history; it predicts the future. We use testing data for downtime optimization, identifying wear patterns before they trigger a catastrophic breakdown. A petrochemical plant in Dammam recently applied this proactive approach. By re-calibrating their multi-pump array to match actual demand, they cut energy consumption by 30%. This shift saved the facility over 450,000 SAR in annual power costs. Regular hydraulic pump testing and calibration turns maintenance from a reactive expense into a strategic advantage.

Q: Interpreting Test Data for Decision Making

You need to know when a pump requires a workshop intervention. The "Case Drain" rule is a primary indicator. If internal leakage exceeds 1% to 3% of the total flow, your pump is likely losing volumetric efficiency. We compare these current flow rates against the manufacturer's original technical data sheet to quantify the loss. Minor deviations often allow for in-house adjustments. However, if the flow drops more than 10% below the baseline, professional workshop repair is necessary to prevent total system failure.

Q: The Role of Calibration in Custom HPUs

Custom-built Hydraulic Power Units (HPUs) don't follow "off-the-shelf" rules. They require unique calibration parameters tailored to specific cylinder speeds and valve response times. Our team aligns the pump output with these exact requirements to ensure smooth actuation. This process keeps the HPU operating within the safety margins of your specific application, whether it's a heavy-lift system or a high-speed assembly line. Proper hydraulic pump testing and calibration ensures every component works in harmony, reducing heat generation and extending component life. Effective hydraulic pump testing and calibration transforms raw data into actionable maintenance strategies. We focus on four critical metrics to ensure your systems remain operational under heavy industrial loads. Volumetric efficiency serves as the primary health check; it compares the actual output flow against the theoretical design flow. A drop below 85% usually indicates internal bypass. This inefficiency can increase operational costs by over 15,000 SAR annually per unit due to wasted energy and heat generation.

Q: The Critical Nature of Case Drain Monitoring

Internal leakage within the pump housing is the most accurate predictor of catastrophic failure. While some flow is necessary for lubrication, excessive case drain flow indicates critical wear on the piston shoes or cylinder block. We establish an "Alarm" threshold when leakage exceeds 5% of the total flow. A "Shutdown" limit is set at 10% to prevent a total mechanical seizure. To measure this safely in high-pressure circuits, our technicians use bypass flow meters. These tools prevent back-pressure buildup, which protects the pump seals from rupturing during the diagnostic process.

Q: Why Partner with ETS for Your Calibration Needs?

Partnering with ETS grants you access to global brand-quality parts and technical expertise without the lead times of international shipping. We've successfully helped 92% of our regional partners reduce their annual maintenance costs by identifying pump wear before it leads to catastrophic system failure. Our "relationship beyond the sale" approach means you receive ongoing technical support and advice on system optimization. We focus on optimizing downtime for leading industries by providing clear, data-driven insights into equipment health. You're not just getting a service provider; you're gaining a technical partner committed to your operational continuity.

Q: Contact ETS for a Precision Performance Audit

Ready to verify your system's integrity? Scheduling a site visit or a pump pickup in the Dammam 2nd Industrial City is simple and efficient. Our team provides a comprehensive hydraulic pump testing and calibration report for every unit serviced. These reports offer a detailed audit trail that's essential for your internal maintenance records and ISO compliance. Don't wait for a component failure to disrupt your production schedule. Optimize your hydraulic performance—contact ETS today to book a precision audit and ensure your machinery stays in motion with reliable, expert-backed solutions. Precision in industrial systems isn't a luxury; it's a vital operational necessity. Regular hydraulic pump testing and calibration ensures your machinery maintains its peak volumetric efficiency, often preventing the 20% drop in performance that typically precedes a total system failure. By monitoring specific KPIs like flow rates and pressure stability, you protect your heavy equipment from costly, unscheduled stops. At Emdad Technical Services (ETS), we provide expert calibration for industry-leading brands like Rexroth and Parker. Our strategic location in Dammam allows us to offer rapid response times, ensuring your facility remains productive. Every test we conduct includes a comprehensive technical report, providing the precise data needed for long-term maintenance planning. Don't let uncalibrated equipment drain your profits or slow your production lines. Choose a partner that understands the urgency of Saudi Arabia's industrial demands. Your systems deserve the highest standard of technical accuracy to keep your operations moving forward. We're ready to help you maintain excellence. Minimize your downtime with ETS professional hydraulic testing

Q: What is the difference between hydraulic pump testing and calibration?

Testing evaluates the current output and efficiency of a pump under specific load conditions, while calibration involves adjusting the internal components to meet precise manufacturer tolerances. During a standard hydraulic pump testing and calibration procedure, our technicians first verify the flow rate and pressure. If the readings deviate from the 95% efficiency benchmark, we calibrate the compensators and relief valves to restore factory settings and ensure reliable performance.

Last month, a petrochemical facility in Jubail faced an unexpected 320,000 SAR loss in productivity when a critical system stalled during peak operations. The culprit wasn't a catastrophic mechanical break, but a subtle loss of pressure precision that went unnoticed for weeks. You likely understand that in high-stakes industrial environments across Saudi Arabia, even a minor fluctuation in machine speed or excessive heat generation can signal a looming disaster. Unplanned downtime is more than just an inconvenience; it's a direct hit to your bottom line and operational reliability.

We've seen how inconsistent force and erratic cycles can frustrate your team and damage your equipment. This guide provides a deep dive into hydraulic pump testing and calibration procedures designed to help you identify failing components before they stop your production line entirely. You'll gain a clear understanding of how to diagnose performance drops and implement proactive maintenance. We will explore professional diagnostic techniques, the step-by-step calibration process, and the specific strategies ETS uses to ensure your systems deliver peak performance under the most demanding conditions.

Key Takeaways

Distinguish between diagnostic testing and precision calibration to ensure your high-pressure systems consistently meet original manufacturer specifications.
Master the professional hydraulic pump testing and calibration procedures required to stabilize fluid temperatures and utilize precision monitoring instruments.
Identify critical Key Performance Indicators, such as Volumetric Efficiency, to accurately measure pump health and prevent unexpected mechanical failures.
Learn how acceptance testing verifies the performance of newly repaired or purchased units before they are integrated into your critical workflows.
Discover how localized expert support in Dammam helps Saudi industrial operations minimize costly downtime through rapid-response diagnostics and workshop services.

Understanding Hydraulic Pump Testing and Calibration

In the demanding industrial environments of Saudi Arabia, distinguishing between diagnostic testing and calibration is vital for operational success. Diagnostic testing is a reactive process used to identify specific mechanical failures or leaks within a system. In contrast, hydraulic pump testing and calibration is a proactive technical adjustment that ensures a pump meets its original manufacturer specifications. For high-pressure systems in Dammam’s petrochemical plants, even a 2% deviation from set pressure parameters can lead to catastrophic component failure or significant safety risks.

Precision calibration is the primary defense against volumetric efficiency loss. When a pump loses efficiency, it works harder to maintain flow, which directly increases energy consumption. In a facility running 24/7, a 10% drop in efficiency can add thousands of SAR to monthly utility bills. Engineers often utilize Thermodynamic pump testing methods to measure these internal losses with high precision. In the Eastern Province, environmental factors like fine silica dust and ambient temperatures exceeding 50°C accelerate the degradation of hydraulic fluids, leading to premature pump drift and internal scouring.

The Impact of Calibration on System Longevity

Maintaining precise pressure alignment prevents uneven wear on internal pistons and vanes. When settings are accurate, the system experiences less vibration and reduced thermal stress on hydraulic seals, which are prone to hardening in the Saudi heat. Calibration drift is the gradual loss of accuracy due to mechanical wear and heat; it's an inevitable reality that requires consistent monitoring to prevent the total breakdown of fittings and hoses.

When to Schedule a Performance Test

Don't wait for a total system shutdown to take action. Silent signs of failure often include a subtle increase in audible noise or a sluggish response in hydraulic actuators. At ETS, we recommend integrating hydraulic pump testing and calibration into a strict 6-month or 12-month maintenance cycle, depending on the intensity of the workload. It's also mandatory to conduct a full performance test after any major repair or when a primary component, such as a control valve or motor, has been replaced to ensure the entire circuit remains balanced.

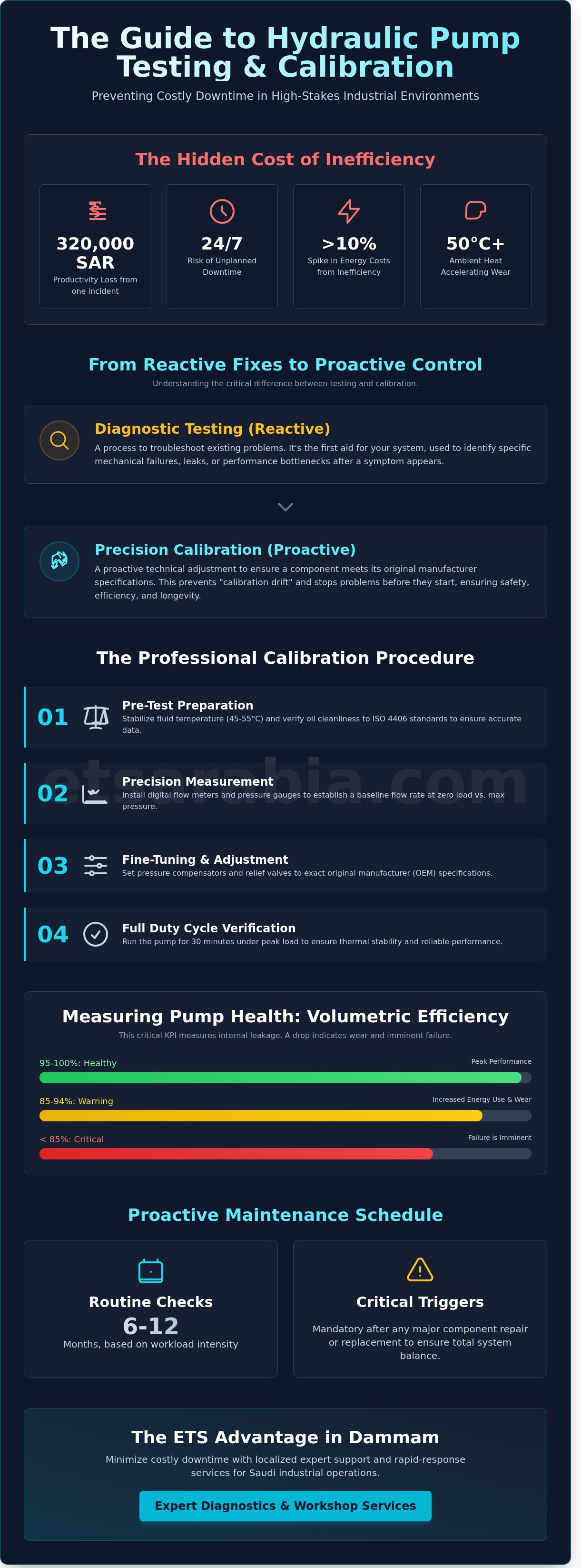

The Professional Hydraulic Pump Calibration Procedure

Precision in hydraulic pump testing and calibration requires a methodical, step-by-step approach to eliminate variables that lead to system failure. At ETS, our process begins with pre-test preparation. We stabilize the hydraulic fluid temperature to a standard operating range, usually between 45°C and 55°C. We also verify that filtration levels meet ISO 4406 cleanliness standards. Testing a pump with contaminated oil or at cold temperatures yields inaccurate data that can mask underlying wear.

Once the system is stabilized, we install precision instruments including digital flow meters, pressure gauges, and tachometers. We establish a baseline by recording the flow rate at zero load and comparing it against the flow at maximum rated pressure. This comparison is critical for calculating volumetric efficiency. During the adjustment phase, our technicians set pressure compensators and relief valves to exact manufacturer specifications. We finish the procedure by running the pump through a full duty cycle. This 30-minute verification ensures the unit maintains thermal stability under peak loads. Our methodology integrates technical insights from the Tribology of Hydraulic Pump Testing to ensure that lubrication and friction levels remain within safe parameters during high-pressure operations.

Essential Tools for Accurate Calibration

Precision hardware is the backbone of our service. While analog gauges are common, we prioritize high-resolution digital pressure gauges for Rexroth and Parker pumps. These tools provide 0.1% accuracy, which is necessary for fine-tuning compensator settings. We utilize turbine flow meters to capture real-time data on internal bypass leakage. Additionally, our team uses infrared thermometers to monitor case drain temperatures. A temperature variance of even 5°C can indicate internal component friction that standard gauges might overlook.

On-Site Diagnostic Testing vs. Bench Testing

On-site testing is an effective solution for rapid troubleshooting and minor adjustments. It's often enough to identify a failing valve or a simple seal leak. However, for pumps exceeding 22kW, a controlled bench test is the only way to guarantee performance. Our advanced test benches in Dammam allow us to simulate 100% load conditions in a sterile environment. This level of hydraulic pump testing and calibration ensures that when a pump returns to your facility, it's ready for immediate, high-stakes operation. If your machinery is losing cycle speed, you should consult with our technicians to determine if a bench test is required for your specific model.

Testing vs. Acceptance: When to Calibrate Your System

Understanding the distinction between acceptance and performance testing is vital for maintaining operational continuity in Saudi Arabia's industrial sectors. Acceptance testing occurs at a critical juncture: when you've purchased a new unit or just received a pump back from an ETS workshop. It's your baseline. This process verifies that the equipment meets the exact specifications promised by the manufacturer or the repair scope. Without this step, you're installing a "black box" into your system, hoping it performs as expected under load.

Performance testing is different. It's a proactive, scheduled diagnostic used to track the wear curve of your machinery. By implementing regular hydraulic pump testing and calibration, you shift from reactive repairs to predictive maintenance. This data allows you to optimize downtime by scheduling service during planned turnarounds rather than facing an emergency shutdown during a high-output shift. For example, a petrochemical plant in Dammam Industrial City recently utilized our testing protocols to identify internal slippage in their primary supply pumps. By performing a precision hydraulic pump testing and calibration sequence, they corrected displacement settings and saved 30% in energy costs, which amounted to over 65,000 ﷼ in annual savings.

Interpreting Test Data for Decision Making

The "Case Drain" rule is the most reliable metric for diagnosing internal health. If the leakage rate from the case drain exceeds 10% of the pump's maximum rated flow, the internal tolerances have likely widened beyond efficient limits. You should compare these current flow rates against the original technical data sheet provided by the OEM. When evaluating pump wear, our technicians often reference standard hydraulic fluid qualification tests to determine if internal erosion stems from fluid degradation or mechanical fatigue. While minor compensator adjustments can often be handled on-site, a volumetric efficiency drop below 85% typically signals that a professional workshop rebuild is necessary to prevent a catastrophic failure.

The Role of Calibration in Custom HPUs

Custom-built Hydraulic Power Units (HPUs) require a unique calibration approach because they don't follow a standard factory template. Each HPU is designed for a specific task, whether it's powering heavy presses or operating large-scale valves in a refinery. Calibration ensures the pump's output aligns perfectly with the pressure and flow requirements of the downstream cylinders. We focus on setting the pump's pressure compensators and load-sensing margins to operate within the specific safety parameters of your application. This precision prevents excessive heat generation and protects sensitive components, ensuring the system's longevity and reliability in the harsh Saudi climate.

Key Performance Indicators (KPIs) in Hydraulic Testing

Precision in hydraulic pump testing and calibration relies on tracking specific metrics that define system health. We focus on four primary KPIs to guarantee your machinery operates at peak performance while avoiding expensive unplanned shutdowns. By quantifying these variables, we turn abstract performance into actionable data.

Volumetric Efficiency: This represents the ratio of actual flow delivered to the theoretical flow. If a pump's efficiency drops below 85%, it typically indicates internal wear that requires immediate attention to prevent energy waste.
Pressure Compensation: We analyze how effectively the pump maintains a set pressure as system demand fluctuates. Stable compensation ensures consistent force for critical operations like petrochemical processing or heavy fabrication.
Case Drain Leakage: This is the most reliable indicator of internal piston or valve plate wear. It acts as the "heartbeat" of the pump, signaling when internal clearances have expanded beyond safe limits.
Response Time: For variable displacement pumps, we measure the speed, often in milliseconds, the unit takes to adjust from zero to full flow. Slow response times lead to sluggish machine cycles and reduced output.

The Critical Nature of Case Drain Monitoring

Excessive case drain flow acts as the primary predictor of catastrophic pump failure. In high-pressure circuits, we establish "Alarm" thresholds when leakage reaches 7% of total flow and "Shutdown" limits at 10%. Measuring these rates safely requires calibrated inline flow meters rather than risky manual tests that can expose technicians to high-pressure oil hazards. Our expert team uses precision instrumentation to capture these readings without compromising site safety, providing a clear window into the pump's internal condition.

Thermal Stability and Oil Viscosity

In Saudi Arabia, ambient temperatures frequently exceed 50°C, causing hydraulic oil to thin rapidly. This reduction in viscosity directly impacts hydraulic pump testing and calibration accuracy. A pump that passes a test at 30°C might fail under the intense heat of a Riyadh summer. We calibrate systems to compensate for these high-heat environments, ensuring that oil life is maximized and internal components remain lubricated. Regular calibration prevents the oxidation of oil, which can save operators over 15,000 SAR in premature fluid replacement costs per unit.

Don't wait for a breakdown to impact your bottom line. Schedule your precision pump calibration with ETS today to ensure reliable performance in any environment.

Professional Hydraulic Services in Dammam: The ETS Advantage

Emdad Technical Services (ETS) stands as a primary partner for industrial leaders across the Eastern Province. We provide specialized support for global brands including Rexroth, Parker, and Danfoss. Our facility in Dammam doesn't just offer basic repairs; we deliver high-precision hydraulic pump testing and calibration to ensure every component meets original equipment manufacturer (OEM) standards. By combining rapid response onsite diagnostics with our fully equipped Dammam workshop, we address the critical need for speed in industrial maintenance.

Our technical team focuses on the specific requirements of the Saudi Arabian Oil & Gas and manufacturing sectors. We understand that a single hour of lost production can cost thousands of Saudi Riyals. Since our 2023 workshop expansion, we've helped over 120 regional facilities integrate their testing protocols with a full-service repair and parts supply chain. This holistic approach ensures that once a pump is calibrated, it's backed by the correct seals, valves, and fittings to maintain peak performance under high-pressure conditions.

Why Partner with ETS for Your Calibration Needs?

Choosing ETS means accessing global-tier technical expertise right here in Saudi Arabia. We don't believe in a one-time transaction. Instead, we offer a "relationship beyond the sale" that includes ongoing technical support and performance monitoring. Our clients in the Dammam 2nd Industrial City have reported a 15% reduction in unexpected system failures after implementing our precision calibration schedules. We offer:

Global Brand Quality: Genuine parts and specialized testing benches for Rexroth and Parker systems.
Optimizing Downtime: We've streamlined our workflow to ensure 24-hour turnaround times for standard diagnostic reports.
Local Expertise: A deep understanding of the environmental factors, such as heat and humidity, that affect hydraulic fluid and pump integrity in the Kingdom.

Contact ETS for a Precision Performance Audit

It's time to verify that your systems are operating at maximum efficiency. You can schedule a site visit or coordinate a pump pickup directly from your facility in the Dammam 2nd Industrial City. Every hydraulic pump testing and calibration service we perform results in a detailed test report. This documentation is essential for your internal maintenance records and ISO compliance audits. Don't wait for a total system failure to address performance lags. Optimize your hydraulic performance, contact ETS today to speak with a technical consultant about your specific system requirements.

Secure Your Industrial Precision and Reliability

Maintaining peak performance in Saudi Arabia's demanding industrial sectors requires more than just routine checks. Precision hydraulic pump testing and calibration ensures your machinery operates within 100% of its designed specifications, preventing the sudden failures that cost Dammam enterprises thousands of SAR in daily lost revenue. By focusing on specific KPIs like flow rate accuracy and pressure response, you transform maintenance from a reactive expense into a strategic advantage.

Emdad Technical Services offers specialized expertise for global brands including Rexroth and Parker. Our strategic location in Dammam allows our team to respond quickly to your facility's needs, providing comprehensive technical reports for every test to guarantee full transparency. These detailed documents offer the data you need to make informed decisions about your fleet's longevity. You'll find that regular calibration doesn't just fix problems; it optimizes your entire workflow for long-term success. Don't let avoidable equipment fatigue slow your progress when expert help is nearby.

Minimize your downtime with ETS professional hydraulic testing

We're ready to help you maintain the high standards your operations demand. Let's work together to ensure your systems stay in motion with absolute precision.

Frequently Asked Questions

What is the difference between hydraulic pump testing and calibration?

Hydraulic pump testing evaluates the current performance and health of the unit, while calibration involves adjusting the pump's internal settings to meet specific manufacturer standards. Testing identifies if a pump is delivering the required flow and pressure, but calibration ensures those outputs are precise and consistent. For industrial systems in Saudi Arabia, these processes work together to prevent a 15% drop in overall system productivity.

How often should a hydraulic pump be calibrated in a high-heat environment?

You should calibrate your hydraulic pump every 3 to 6 months when operating in high-heat environments like the Eastern Province or Riyadh. Ambient temperatures exceeding 45°C cause hydraulic fluid to thin, which leads to internal slippage and shifts in the pump's set points. Regular intervals ensure your hydraulic pump testing and calibration schedule accounts for these thermal stresses, preventing failures that can cost over 18,000 SAR per hour in lost production.

Can I calibrate my hydraulic pump while it's still installed on the machine?

You can perform basic pressure compensator and load-sense adjustments while the pump's installed on the machine, but it's not ideal for precision. A full calibration requires a dedicated test bench to isolate the pump from other system variables like leaking valves or worn cylinders. Facilities in Jubail provide controlled environments where flow rates are measured with 99.5% accuracy, which is impossible to achieve during field operations.

What tools are required for a standard hydraulic pump performance test?

A standard performance test requires a high-pressure flow meter, calibrated pressure gauges, a digital tachometer, and infrared temperature sensors. You also need a data logger to capture transient pressure spikes that occur in less than 50 milliseconds. Using professional-grade tools ensures your hydraulic pump testing and calibration results are accurate within a 1% margin of error, providing a reliable baseline for your maintenance records.

What are the signs that my hydraulic pump needs immediate calibration?

Immediate calibration is necessary if you notice a 12% increase in cycle times or if the pump's operating temperature rises 10 degrees above its normal range. Excessive noise levels exceeding 85 decibels often indicate that the internal compensator settings are drifting. Addressing these signs early prevents catastrophic component failure and avoids the 45,000 SAR price tag associated with a full pump replacement and system flush.

How long does a professional hydraulic pump bench test typically take?

A professional hydraulic pump bench test typically takes between 2 and 4 hours to complete. This timeframe includes the initial warm-up period to reach an operating temperature of 50°C and a series of stepped pressure tests. If the pump requires complex internal adjustments, the process might extend to 6 hours to ensure every setting meets the exact specifications of the original equipment manufacturer.

Is case drain leakage normal during a hydraulic pump test?

Minimal case drain leakage is normal for lubrication and cooling, but it shouldn't exceed 1% to 3% of the pump's total rated flow. If a pump rated for 100 liters per minute shows case leakage over 5 liters per minute, internal wear is likely present. Monitoring this specific metric during testing helps technicians determine if the pump needs a rebuild or a simple calibration adjustment to optimize performance.

What happens if a hydraulic pump isn't properly calibrated?

Improper calibration leads to a 20% increase in energy consumption and puts excessive stress on hoses and actuators. In high-pressure Saudi industrial plants, a miscalibrated pump can cause relief valves to fail, creating a safety hazard for your staff. It also results in inconsistent product quality, as the system can't maintain the precise force required for sensitive manufacturing processes, leading to increased waste.
