When a critical hydraulic cylinder fails, your entire operation can grind to a halt. The pressure is immediate, with every hour of downtime translating into significant costs and project delays, measured in lost Saudi Riyal. You are faced with a crucial decision: is a prompt hydraulic cylinder repair a reliable, cost-effective solution, or is a full replacement the only way to guarantee future performance? This uncertainty can lead to extended downtime as you weigh the risks of a temporary fix against the high upfront cost of a new unit.
This guide eliminates that guesswork. We provide a clear, logical cost-benefit framework to help you confidently determine the best course of action for your specific situation in Saudi Arabia. By understanding the key factors-from the extent of the damage to long-term value-you can make an informed decision that minimizes operational interruptions, protects your budget, and ensures your equipment returns to service with guaranteed reliability. Let's explore how to choose the right solution and find an expert partner you can trust.
Diagnosing the Problem: Common Causes of Hydraulic Cylinder Failure
In industrial operations across Saudi Arabia, equipment downtime is a critical cost. When a hydraulic cylinder fails, the immediate question is whether to repair or replace it. The correct answer begins with a precise diagnosis. Understanding why the component failed is the essential first step in any effective hydraulic cylinder repair strategy. This not only determines the most cost-effective solution but also provides the insight needed to prevent recurring failures, safeguarding your productivity and optimizing your maintenance budget.
A thorough inspection identifies the root cause, allowing our experts to recommend a solution that ensures long-term reliability. Below are the most frequent failure points we encounter in industrial hydraulic systems.
Seal Failure: The Most Common Culprit
Seals are the most frequent point of failure in hydraulic systems. Whether it's an external leak dripping oil onto your equipment or an internal leak causing cylinder drift and a loss of holding power, worn or damaged seals are often the cause. Common triggers include excessive heat, which can make seals brittle, abrasive contaminants in the hydraulic fluid, or incorrect installation procedures. A prompt diagnosis can often limit the repair to a simple resealing, a fast and efficient solution.
Rod and Barrel Damage: Scratches, Bending, and Corrosion
Physical damage to the core components of the hydraulic cylinder presents a more serious challenge. A bent or bowed cylinder rod, typically caused by excessive side-loading or improper mounting, can lead to catastrophic seal failure. Meanwhile, scoring and deep scratches on the rod surface or internal barrel wall are clear signs of contamination, where hard particles have been dragged across precision surfaces. In coastal or humid environments, moisture in the fluid can also lead to pitting and corrosion, compromising the cylinder's structural integrity and performance.
Piston and End Cap Issues
The piston is where the hydraulic force is applied. If the piston seals are damaged, fluid can bypass the piston internally. This results in a significant loss of power and slow, inefficient operation, even with no visible external leaks. Additionally, end caps (glands) can crack from sudden impacts or severe pressure spikes, creating a major leak point. Damaged threads on the rod or gland can also complicate a hydraulic cylinder repair and compromise the safety of the reassembled unit if not expertly addressed.
The ETS Repair Process: A Step-by-Step Technical Breakdown
Understanding what happens to your equipment behind our workshop doors is key to building trust. A successful hydraulic cylinder repair is not guesswork; it is a science built on a meticulous, repeatable process. At ETS, we have perfected a three-stage procedure that guarantees every repaired cylinder meets or exceeds original equipment manufacturer (OEM) specifications. This systematic approach minimizes uncertainties and ensures the reliable, long-lasting performance your operations in Saudi Arabia depend on.
Stage 1: Complete Disassembly and Comprehensive Inspection
Our process begins with the careful and complete disassembly of your hydraulic cylinder. Every component is methodically cleaned and laid out for a rigorous evaluation. Our expert technicians then perform a detailed diagnostic inspection, which includes:
- Precision Measurement: We measure the rod, barrel, and piston, comparing all dimensions against OEM specifications to identify wear and deviation.
- Non-Destructive Testing (NDT): Advanced NDT techniques are employed to detect microscopic cracks or hidden material flaws that visual inspections would miss.
- Failure Analysis: We provide a detailed failure analysis report that pinpoints the exact root cause, a critical first step detailed in any professional hydraulic cylinder troubleshooting guide.
Stage 2: Precision Machining, Honing, and Component Replacement
Once the faults are identified, our skilled machinists restore components with unparalleled precision. Damaged cylinder rods are re-chromed and polished to exact tolerances for a flawless finish. The cylinder barrel is honed to restore a perfect sealing surface, eliminating internal bypassing and enhancing efficiency. If any component is beyond repair, we fabricate or source new parts-such as glands, pistons, or rods-using only high-quality materials. We exclusively use seals and parts from trusted, industry-leading brands to ensure maximum durability.
Stage 3: Meticulous Reassembly and Rigorous Pressure Testing
Reassembly is performed in a contamination-controlled environment to prevent the ingress of damaging particles. Our technicians adhere strictly to OEM torque specifications for all fasteners, ensuring structural integrity. The final and most critical step is testing. Every repaired cylinder is mounted on our dedicated test bench to undergo both static and dynamic pressure tests, simulating real-world operational loads. Only after passing these rigorous tests is the cylinder certified, complete with our performance guarantee and a comprehensive warranty for your peace of mind.

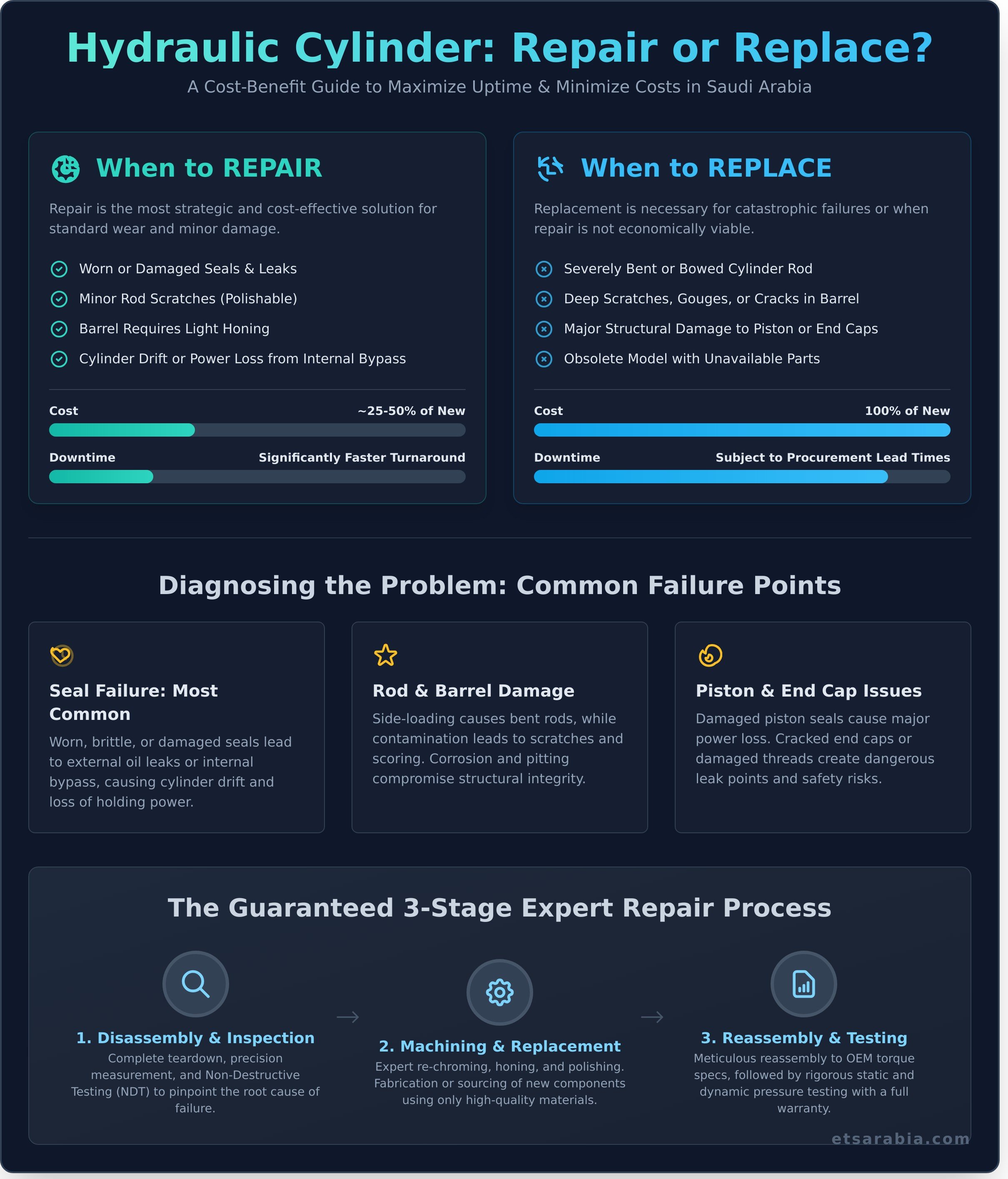

Decision Matrix: When to Repair Your Hydraulic Cylinder
Making the right call between repair and replacement is critical for managing budgets and minimizing operational downtime in Saudi Arabia's demanding industrial sector. This decision matrix provides a clear framework for identifying when a professional hydraulic cylinder repair is the most strategic and cost-effective solution for your equipment. Use this guide to help justify your decision and ensure you are maximizing the value of your assets.
Scenario 1: Minor Damage and Standard Wear
When cylinder failure is due to expected wear and tear rather than a catastrophic event, repair is almost always the superior choice. Understanding the Common causes of hydraulic cylinder failure, such as seal degradation or minor fluid contamination, helps in diagnosing these issues. If the damage is limited to worn seals, minor rod scratches that can be polished, or a barrel that only needs light honing, a repair will restore the component to OEM specifications quickly and affordably, getting your machinery back to work with minimal delay.
Scenario 2: The Cylinder is Custom or Obsolete
For machinery that utilizes custom-fabricated or obsolete cylinders, repair is not just an option-it's a critical operational advantage. Sourcing a new, bespoke cylinder can involve staggering costs and lead times stretching for months, causing extended and costly downtime. Repairing the existing unit preserves the original engineering and gets your specialized equipment back online significantly faster than waiting for a replacement from a manufacturer that may no longer exist or support that specific model.
Scenario 3: Repair Cost is Under 60% of Replacement
A sound financial rule is to proceed with repair when the total cost is less than 60% of a new replacement. This provides a clear return on investment, provided the cylinder's core components-the rod and barrel-are structurally intact. For example, if a new cylinder costs 25,000 SAR, a comprehensive hydraulic cylinder repair for 14,000 SAR is an intelligent financial decision that extends the asset's life without the full capital expense. Unsure about your costs? Get a fast repair quote from our Dammam workshop to see the savings for yourself.
The Tipping Point: When Cylinder Replacement is the Smarter Option
At ETS, our primary goal is to ensure the long-term reliability and efficiency of your operations. While we specialize in expert hydraulic cylinder repair, we are also your trusted advisors. We believe in providing honest assessments, and sometimes, the most responsible and cost-effective solution is to replace a cylinder rather than repair it. Understanding this tipping point is crucial for minimizing future downtime and protecting your investment.
Scenario 1: Catastrophic Structural Failure
When a hydraulic cylinder suffers severe structural damage, repair is often no longer a viable or safe option. This includes critical failures where the core integrity of the component is compromised. Key indicators include:
- A cracked, ballooned, or deeply scored cylinder barrel that cannot be re-honed to specifications.
- A cylinder rod that is severely bent, fractured, or has chrome plating damage too extensive to re-chrome.
- Irreparable damage to the cylinder's mounting points (clevis, trunnion) or ports.
Attempting to repair such extensive damage compromises operational safety and cannot guarantee the reliable performance required in demanding industrial environments.
Scenario 2: When Repair Costs Approach Replacement Costs
A sound financial decision is central to effective equipment management. We advise clients to consider a practical industry guideline often called the '70% Rule'.
If the total estimated cost for a comprehensive hydraulic cylinder repair-including all parts, labour, and testing-exceeds 70% of the price of a brand-new cylinder, replacement becomes the more logical choice. For instance, if a new cylinder costs 10,000 SAR and the repair quote is 7,500 SAR, the small saving does not outweigh the benefit of a new component. A new cylinder comes with a full manufacturer's warranty, offering long-term peace of mind that a limited repair warranty cannot match.
Scenario 3: An Opportunity to Upgrade Performance
A critical failure can also present a strategic opportunity to enhance your equipment's capabilities. Instead of simply restoring old specifications, consider if a replacement could offer significant operational advantages. This is an ideal time to:
- Improve Technology: Upgrade to a newer cylinder design with better sealing technology, higher efficiency, or integrated sensors for smarter operation.
- Enhance Durability: Select a replacement model with a higher pressure rating or more robust materials better suited to your application's demands.
- Standardize Your Fleet: Replace an obsolete cylinder with a standard model to simplify future maintenance and streamline your spare parts inventory.
Ultimately, our team at ETS is committed to providing the solution that delivers the best long-term value and operational security for your business.
Why Trust ETS for Hydraulic Cylinder Services in Saudi Arabia?
In Saudi Arabia's demanding industrial sectors, from oil and gas to manufacturing, equipment downtime is not just an inconvenience-it's a significant financial liability. Choosing a local technical partner who can respond swiftly and effectively is critical. Emdad Technical Services (ETS) is that partner. We provide a complete, end-to-end solution for your hydraulic cylinder needs, combining expert repair capabilities with strategic parts sourcing to minimize your operational interruptions and protect your bottom line.
Expert Diagnosis and Honest Assessment
When a hydraulic cylinder fails, you need a clear, data-driven path forward. Our highly skilled technicians perform a thorough inspection and provide an honest assessment, recommending either repair or replacement based on a comprehensive cost-benefit analysis. We believe in full transparency, delivering detailed inspection reports and clear quotations to help you make the most cost-effective decision for your equipment and budget.
State-of-the-Art Workshop in Dammam
Our Dammam-based workshop is the cornerstone of our service excellence. It is equipped with advanced machinery for precision honing, chroming, machining, and rigorous pressure testing. This in-house capability allows us to perform complex hydraulic cylinder repair tasks with exceptional speed and quality control, drastically reducing turnaround times. From the Eastern Province to clients across the Kingdom, we ensure your equipment is back in service faster.
Comprehensive Parts Sourcing and Supply
If a replacement is the more viable solution, ETS manages the entire process for you. Thanks to our strong partnerships with leading global hydraulic brands, we can quickly source high-quality, OEM-spec cylinders and components. We handle everything from the initial diagnosis and sourcing to final installation and commissioning, providing a seamless, single-source solution that guarantees reliable performance and system integrity.
Don't let a failed cylinder disrupt your operations. Partner with a team that delivers expertise, reliability, and solutions that keep your business moving forward. Schedule your cylinder inspection with an ETS expert today.
Your Strategic Partner in Hydraulic Cylinder Maintenance
Choosing between repair and replacement is a critical decision that directly impacts your operational efficiency and bottom line in Saudi Arabia. The key takeaway is clear: a thorough diagnosis is essential. While repair is often the most cost-effective and timely solution for common failures, replacement becomes the necessary path when faced with catastrophic damage or costs that approach a new unit's price in SAR.
The ultimate goal is to minimize downtime and protect your investment. At ETS, our state-of-the-art facility in Dammam provides expert hydraulic cylinder repair services tailored for the Kingdom's most demanding industries, including Oil & Gas, Marine, and Manufacturing. We guarantee reliable performance through a rigorous, multi-point testing process, ensuring your equipment is restored to OEM specifications.
Don't let a failing cylinder disrupt your productivity. Contact ETS for an expert cylinder assessment and reduce your downtime. Partner with us to enhance your equipment's performance and keep your operations moving forward with confidence.
Frequently Asked Questions About Hydraulic Cylinder Repair
How long does a typical hydraulic cylinder repair take?
The turnaround time for a hydraulic cylinder repair depends on the extent of the damage and the availability of specific parts. A standard reseal or minor repair can often be completed within 2-3 business days. For more complex issues requiring component fabrication or sourcing non-standard parts, the process may take longer. At ETS, we prioritize efficient service to minimize your operational downtime, providing a clear timeline after our initial inspection and assessment is complete.
What is the warranty on a repaired hydraulic cylinder from ETS?
Emdad Technical Services stands behind the quality of our work with a comprehensive 12-month warranty on all repaired hydraulic cylinders. This warranty covers both the materials we use and our expert workmanship, giving you complete peace of mind. Our commitment to reliable performance means that if any issue arises from our repair within the warranty period, we will address it promptly. We believe our relationship with you doesn't end at the sale; it continues with guaranteed support.
Can you repair large or oversized hydraulic cylinders for heavy equipment?
Yes, absolutely. Our state-of-the-art facility in Saudi Arabia is fully equipped with heavy-duty cranes, large-scale honing machines, and advanced testing benches to handle large and oversized hydraulic cylinders. We routinely service cylinders from heavy equipment used in the construction, oil and gas, and mining industries. Our expert technicians have the skills and resources to disassemble, repair, and test even the most demanding industrial cylinders, ensuring they meet or exceed OEM specifications.
Do you provide on-site services for hydraulic cylinder removal and installation?
Yes, we offer comprehensive on-site field services to support our clients across Saudi Arabia. Our skilled technicians can be dispatched to your location to safely and efficiently diagnose issues, remove the faulty cylinder, and transport it to our workshop. Once the repair is complete, we return to your site to perform professional installation and system testing. This end-to-end solution is designed to minimize your logistical burden and reduce costly equipment downtime, getting your operations back online faster.
What brands of hydraulic cylinders do you service?
Our technicians possess extensive experience servicing a wide array of hydraulic cylinder brands from leading international manufacturers. We commonly work on cylinders from brands such as Bosch Rexroth, Parker, Caterpillar, Eaton, HYVA, and Enerpac. Furthermore, our advanced fabrication capabilities allow us to effectively service custom-built or unbranded cylinders. Whatever the make or model, you can trust ETS to provide a reliable and effective repair solution tailored to your specific equipment.
Is it possible to upgrade a cylinder's performance during a repair?
Definitely. A repair is an excellent opportunity to enhance a cylinder's performance and durability. During the hydraulic cylinder repair process, we can recommend and implement upgrades to better suit your application. This may include upgrading to high-performance seals for extreme temperatures, installing harder chrome-plated rods for superior corrosion resistance, or modifying porting for improved fluid dynamics. Our goal is to return a cylinder that not only works like new but performs even better.
