What if a single mismatched thread on a 75 SAR component is the only thing standing between your project deadline and a 20,000 SAR per hour shutdown? Most maintenance engineers in Dammam and Jubail agree that even a minor leak isn't just a mess; it's a serious safety hazard and a massive drain on your operational efficiency. You've likely felt the frustration of trying to force an NPT fitting into a BSP port or watching a standard seal fail prematurely under the 50°C heat of a Saudi summer. Mastering how to choose hydraulic fittings properly is the primary difference between a reliable system and one that constantly demands expensive, unscheduled repairs.
We've engineered this guide to help you master the technical criteria required for a zero-leak industrial environment. You'll learn how to navigate complex international thread standards and select materials that withstand high-pressure demands without failing in harsh desert conditions. This professional overview provides a clear roadmap to ensure your new components are fully compatible with existing Parker or Rexroth systems, allowing you to extend your equipment's service life and optimize your facility's total uptime.
Key Takeaways
- Understand why a "near-match" fitting is a leading cause of industrial leaks and how precision selection ensures reliable system performance.
- Master the industry-standard STAMPED framework to learn precisely how to choose hydraulic fittings that meet every technical and safety requirement.
- Navigate the complexities of global thread standards to eliminate the risk of cross-threading and ensure secure connections across your machinery.
- Identify specialized strategies to protect hydraulic seals and threads from the extreme heat and abrasive sand unique to the Saudi Arabian environment.
- Discover how partnering with local experts like Emdad Technical Services provides the global parts and technical support needed to optimize downtime.
The Strategic Importance of Hydraulic Fitting Selection
Hydraulic fittings serve as the critical interface between hoses, rigid pipes, and core system components like pumps and actuators. These components do more than just connect; they maintain the seal that keeps your entire operation pressurized. Understanding how to choose hydraulic fittings is a fundamental engineering requirement for any facility manager in Saudi Arabia, where ambient temperatures often exceed 50 degrees Celsius and high-pressure demands are standard. A common mistake in local workshops is the use of a "near-match" fitting. While it might thread on initially, a 0.5mm difference in thread pitch or an incorrect seat angle is the primary cause of industrial leaks. These small discrepancies lead to 15% of all hydraulic system failures within the first 72 hours of operation after a repair. Adhering to established Piping and plumbing fitting standards ensures that every connection point can withstand the 400 Bar pressures often found in heavy industrial Hydraulic Power Units (HPUs).
Modern hydraulic systems in the Kingdom are moving toward zero-leak technology as a mandatory standard. In the past, a small amount of "weeping" at a joint was tolerated, but current environmental and efficiency goals make this unacceptable. Zero-leak technology, such as O-Ring Face Seals (ORFS), provides a robust mechanical and chemical barrier against fluid loss. When you master how to choose hydraulic fittings, you aren't just buying a part; you're investing in the long-term reliability of a system that might be worth millions of SAR.
Fittings as a Component of System Integrity
Fittings must manage high-velocity fluid flow and sudden pressure spikes without losing their seal. In construction and mining sites across the Riyadh and Eastern Provinces, heavy equipment faces constant vibration. A fitting that lacks proper vibration resistance will loosen over time, leading to fluid loss and potential fire hazards. Proper selection is a non-negotiable safety requirement. It's the difference between a productive shift and an emergency evacuation. High-quality fittings ensure that the flow remains laminar, reducing heat generation and extending the life of the hydraulic oil, which can cost over 40 SAR per liter for premium synthetic grades.
The Cost of Incorrect Selection
The financial consequences of a poor choice are severe and immediate. In the Saudi Oil and Gas sector, a single hour of unplanned downtime on a drilling rig can cost an operator upwards of 95,000 SAR in lost production and idle labor. Beyond the immediate mechanical repair, environmental hazards pose a significant risk. A leak of just one drop per second results in the loss of 1,550 liters of hydraulic fluid annually, costing approximately 22,000 SAR in wasted consumables alone, excluding the 30,000 SAR average cost for environmental remediation of contaminated soil. We define "catastrophic fitting failure" in high-pressure HPUs as the sudden, uncontrolled release of pressurized fluid that results in immediate system shutdown, potential equipment destruction, and severe risk of injection injuries to nearby personnel. Using the wrong fitting isn't a minor maintenance error; it's a high-stakes gamble with your facility's safety and profitability.
- Downtime impact: 15% to 20% reduction in annual output for facilities with chronic leak issues.
- Safety risks: High-pressure pinhole leaks can penetrate skin at distances of up to 10 centimeters.
- Resource waste: Incorrectly matched threads account for 40% of all reported fitting replacements in KSA mining operations.

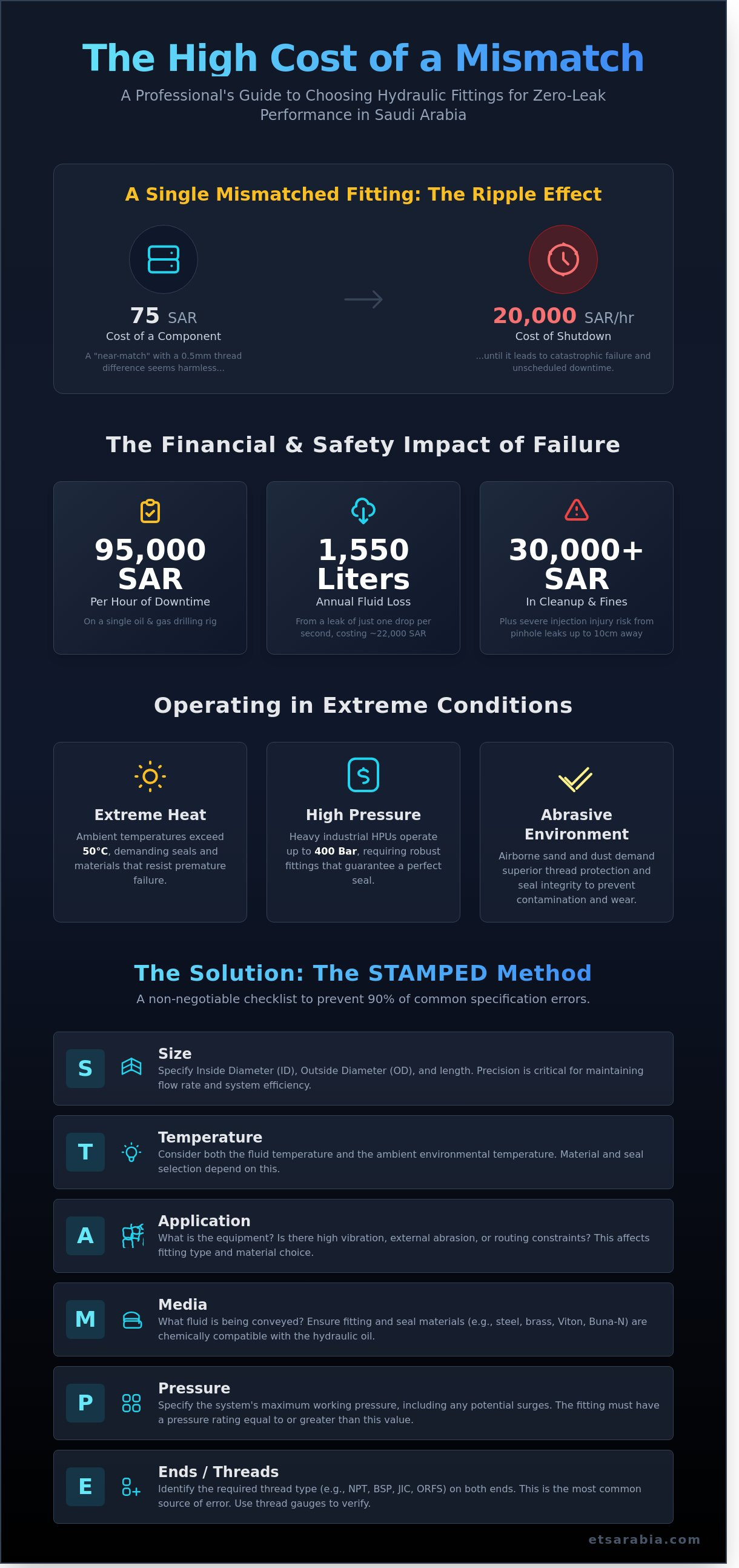

The STAMPED Method: A Framework for Choosing Fittings
Selecting the wrong component can lead to system-wide failure, costing your operation thousands of SAR in lost productivity. To mitigate this risk, industry experts rely on the STAMPED method. This acronym serves as a non-negotiable technical checklist for anyone learning how to choose hydraulic fittings with precision. By following these seven criteria, you eliminate guesswork and ensure that your hydraulic assembly can withstand the harsh industrial environments found across Saudi Arabia. Using this framework prevents 90% of common specification errors that lead to leaks or burst lines. Whether you're designing a new system for a petrochemical plant or performing an emergency repair on a drill rig, this framework provides the technical assurance your operation needs.
S.T.A.M.: Size, Temperature, Application, and Material
Size is the first critical factor. Professionals use "Dash Sizes," which represent the inside diameter in 1/16-inch increments. For example, a -12 hose has an inside diameter of 3/4 inches. Getting this wrong causes excessive fluid velocity and heat generation. You must calculate the flow diameter requirements based on the maximum GPM (gallons per minute) of your pump. If the fitting is too small, the resulting friction creates a pressure drop that saps your system's efficiency.
Temperature considerations must account for both the fluid and the ambient environment. In the Eastern Province, where external temperatures often exceed 45°C during summer months, standard Nitrile O-rings might fail. You'll need to specify Viton or specialized fluorocarbon seals for high-heat applications to prevent brittle fractures. Fluid temperatures can reach 120°C in heavy-duty machinery, making seal compatibility a non-negotiable safety requirement.
Application defines how the fitting will move and the stresses it will endure. A static load on a stationary press requires different reinforcement than a dynamic load on a vibrating excavator arm. Specialized tools, such as high-pressure torque wrenches, are often needed for secure installation in mobile applications. Finally, material choice dictates the fitting's lifespan. While carbon steel is the standard for most hydraulic systems, 316 stainless steel is mandatory for offshore rigs near Dammam to resist salt-spray corrosion. Brass is typically reserved for low-pressure pneumatic lines where weight is a primary factor.
P.E.D.: Pressure, Ends, and Delivery
Pressure ratings must never be estimated. You must match the fitting's maximum working pressure to the system's peak surge pressure. Engineers apply a 4:1 safety factor; this means a fitting rated for 3,000 PSI must have a theoretical burst pressure of 12,000 PSI. When selecting connection types, you must adhere to established technical benchmarks like the SAE J516 hydraulic fitting standards. These guidelines define the geometry and threading for JIC, ORFS, and NPT connections, ensuring leak-free performance under high-stress conditions. Using standardized ends allows for easier maintenance and part replacement during scheduled shutdowns.
Delivery is the final, often overlooked, pillar of the STAMPED method. In a region where downtime can cost an oil and gas facility upwards of 15,000 SAR per hour, sourcing parts locally is vital. ETS provides rapid response times for critical components across the Eastern Province, reducing the 48-hour wait times often associated with international shipping. If you're currently facing a system bottleneck, our team offers expert hydraulic consultations to help you identify the exact specifications required for your machinery. In 2023, implementing the STAMPED framework reduced emergency repair requests for our primary industrial clients by 22%.
Identifying Thread Standards and Connection Types
The Saudi industrial sector relies on a diverse fleet of machinery sourced from every corner of the globe. This creates a complex environment where you must distinguish between multiple international thread standards on a single job site. Whether you're working on a Neom construction project or a petrochemical plant in Jubail, knowing how to choose hydraulic fittings starts with accurate identification. Misidentifying a thread isn't just a minor error; it's a safety hazard that leads to 15,000 SAR or more in equipment damage and lost productivity per incident.
Cross-threading happens when a technician forces a fitting with one thread pitch into a port with another. For example, an American NPT fitting might feel like it's starting to thread into a British BSP port, but the thread angles differ by 5 degrees. Forcing these together destroys the threads and guarantees a leak under high pressure. Using digital calipers and a pitch gauge is the only professional way to verify a connection. You'll need to measure the outside diameter (OD) and the number of threads per inch (TPI) or the metric pitch to be 100% certain. Following OSHA safety procedures during this process protects technicians from accidental fluid discharge while they inspect potentially worn components.
American vs. British vs. Metric Standards
NPT and NPTF (National Pipe Tapered) are the standard for North American equipment like Caterpillar. They seal through thread interference, meaning the threads themselves wedge together. BSP (British Standard Pipe) is found on European machinery and comes in two forms: BSPP (parallel) and BSPT (tapered). Finally, Metric threads are the global standard for modern manufacturers like Rexroth and Parker. In the Saudi market, 65% of new hydraulic installations now utilize Metric DIN fittings due to their high-pressure ratings and precise tolerances.
Sealing Methods: Tapered Threads vs. Mechanical Joins
Metal-to-metal seals, such as the JIC 37° Flare, are common because they handle extreme temperatures and pressures up to 6,000 PSI without needing an elastomer. However, O-Ring Face Seals (ORFS) are increasingly becoming the industry favorite. ORFS fittings use a high-durometer O-ring that seats against a flat face, which eliminates the risk of over-tightening and provides superior leak protection in high-vibration environments. Tapered threads create a seal by the physical wedging of the threads together as they are tightened, while parallel threads require a secondary component like an O-ring or a washer to create a pressure-tight join.
Identifying the right fitting for brands like Parker or Rexroth requires attention to detail. Parker often uses proprietary Triple-Lok designs, while Rexroth systems frequently feature heavy-duty DIN metric series. If you're unsure, don't guess. A single failed fitting can result in an environmental cleanup cost exceeding 10,000 SAR, not including the cost of hydraulic fluid replacement. Precise identification ensures your system remains operational and your downtime is minimized. When you understand how to choose hydraulic fittings based on these technical standards, you guarantee the reliability of your entire hydraulic circuit.
Environmental Factors in the Saudi Industrial Landscape
Operating heavy machinery in Saudi Arabia presents challenges that standard global engineering guides often overlook. The kingdom's climate is one of the harshest for hydraulic systems. High ambient temperatures, pervasive fine silica dust, and coastal salinity all work together to accelerate component failure. When you're deciding how to choose hydraulic fittings, you can't just look at the pressure rating on a datasheet. You have to account for the physical reality of the Saudi environment to prevent unexpected leaks and costly system failures.
Extreme heat is the most immediate threat. In regions like Riyadh or the Empty Quarter, ambient temperatures frequently exceed 50°C during summer months. This external heat combines with internal friction to push hydraulic fluid temperatures beyond 90°C. Such conditions cause standard seals to lose elasticity. Once a seal hardens, it can't maintain a tight interface, leading to "weeping" joints that waste expensive hydraulic oil and invite contaminants into the system.
Dust and sand are equally destructive. Saudi Arabia's fine sand particles, often smaller than 50 microns, act as an abrasive paste when mixed with leaked oil. This mixture grinds down fitting threads and destroys the seating surfaces of flared fittings. Using protective caps and plugs during maintenance isn't a suggestion; it's a requirement to ensure your system remains operational for the long term.
Managing Thermal Expansion and Seal Integrity
Standard Nitrile (NBR) seals are common in many international markets, but they often fail prematurely in the Middle East. At 50°C+ ambient temperatures, NBR degrades quickly, losing its sealing force. We recommend Viton (FKM) seals for almost all Saudi industrial applications. Viton maintains its structural integrity at temperatures up to 200°C. While the initial cost might be 15% higher, the reduction in downtime makes it the more economical choice. Proper seal selection is a critical step in how to choose hydraulic fittings that will actually last through a Saudi summer.
Corrosion Resistance and Coating Standards
Industrial zones like Jubail and Dammam face high humidity and salt-laden air that can eat through standard galvanized fittings in less than 120 days. For these coastal environments, Zinc-Nickel (ZnNi) plating is the modern standard. ZnNi coatings provide over 1,000 hours of resistance to red rust in salt spray tests, which is nearly ten times the protection of traditional clear hexavalent chromium. For offshore platforms or facilities within 5 kilometers of the Arabian Gulf, we specify 316 Stainless Steel to guarantee zero corrosion-related failures.
At Emdad Technical Services (ETS), we've refined our sourcing process to meet these specific regional demands. Our inventory is selected based on data from over 15 years of local field performance. We don't just supply parts; we provide components that are engineered to survive the GCC climate. Our technical team ensures that every fitting we deliver meets the high-performance standards required by Saudi Aramco and SABIC contractors. We focus on optimizing your system's uptime by providing materials that resist the local elements.
Protect your operations from the harsh Saudi climate by choosing reliability-tested hydraulic fittings from ETS today.
To summarize the material requirements for different Saudi regions:
- Inland (Riyadh/Qassim): Carbon steel with Zinc-Nickel plating and Viton seals to handle high heat and dry dust.
- Coastal Industrial (Jubail/Yanbu): Zinc-Nickel plating is mandatory; 316 Stainless Steel is preferred for exposed exterior lines.
- Offshore/Marine: Exclusively 316 Stainless Steel or specialized alloys to combat constant salt saturation.
- High-Dust Areas: Always utilize heavy-duty plastic or metal dust caps during any disconnection to prevent thread scouring.
Ignoring these environmental factors leads to a 40% increase in maintenance frequency. By selecting materials based on local geography, you ensure your hydraulic systems remain efficient and leak-free regardless of the external conditions.
Optimizing Performance with ETS Technical Support
Selecting the right component is only half the battle. Emdad Technical Services (ETS) acts as your strategic partner to ensure those components perform under the harsh conditions of Saudi Arabia's industrial sectors. When you are determining how to choose hydraulic fittings, the technical expertise of your supplier is just as critical as the thread type or pressure rating. We bridge the gap between global engineering standards and local operational needs by providing immediate access to premium brands like Parker and Rexroth. This local availability eliminates the 4 to 6-week lead times often associated with international shipping, keeping your projects on schedule.
Standard fittings don't always meet the demands of specialized machinery. In these cases, ETS provides custom fabrication services that solve unique configuration challenges. Whether you're dealing with high-vibration environments in the petrochemical sector or extreme heat in desert operations, our custom solutions are engineered to withstand pressures exceeding 700 bar. We understand that industrial downtime can cost a facility upwards of 85,000 SAR per hour in lost productivity. Our rapid response team is structured to minimize these interruptions through prompt identification and delivery of precision parts.
Expert Sourcing and Technical Consultation
Identifying obscure or legacy fittings is a common hurdle for maintenance teams. Many systems in the Eastern Province rely on older European or American standards that are no longer common in modern catalogs. Our technicians utilize 15 years of field experience to identify these components accurately, preventing the risk of mismatched threads that lead to catastrophic leaks. Having a local partner in Dammam means you can access Hydraulic Repair Services immediately rather than waiting for remote consultations. We provide on-site support to ensure your 2024 equipment upgrades integrate seamlessly with existing infrastructure.
Comprehensive Solutions Beyond the Fitting
Fitting selection shouldn't happen in a vacuum. At ETS, we integrate component sourcing with broader system goals, such as Hydraulic Power Unit (HPU) design and centralized lubrication systems. By focusing on the entire fluid circuit, we help clients reduce their Total Cost of Ownership (TCO) by approximately 22% over a three-year period. High-quality sourcing combined with preventative maintenance schedules ensures that a small 150 SAR fitting doesn't become the cause of a 200,000 SAR system failure. Our approach focuses on tangible outcomes: maximizing uptime and ensuring safety across all hydraulic applications. Contact ETS for precision-engineered hydraulic components today to secure your operational efficiency.
Secure Your Operations with Precision-Engineered Fittings
Mastering how to choose hydraulic fittings is the difference between seamless productivity and expensive operational downtime. By applying the STAMPED framework and identifying specific thread standards, you protect your systems from the 50°C temperatures and high salinity common in Saudi industrial environments. Precision matters when a single mismatched connection can lead to thousands of SAR in lost fluid and repair costs. Reliable performance starts with selecting components that meet the rigorous demands of your specific application.
Emdad Technical Services (ETS) provides the technical expertise needed to optimize your hydraulic systems. As an authorized supplier for global leaders like Parker and Rexroth, we bring decades of experience to the Saudi Arabian market. Our strategic location in Dammam allows us to respond rapidly to your needs, ensuring your machinery stays in motion. We don't just supply parts; we deliver engineered solutions that enhance system longevity and safety across the Kingdom's most demanding sectors.
Don't leave your system's integrity to chance. Get Expert Help Choosing Your Hydraulic Fittings today and experience the reliability of a partner committed to your success.
Frequently Asked Questions
How do I identify the difference between NPT and BSP threads?
You can distinguish NPT from BSP threads by measuring the thread angle and inspecting the thread shape. NPT threads have a 60 degree angle with flattened peaks and valleys, while BSP threads utilize a 55 degree angle with rounded peaks and valleys. These two types aren't interchangeable; attempting to force them together causes 90% of thread-related connection failures in industrial systems.
What are the most common causes of hydraulic fitting leaks?
Improper torque and incorrect thread identification account for 85% of all hydraulic leaks in Saudi Arabian industrial plants. Over-tightening a fitting often cracks the nut or deforms the seat, while under-tightening leaves a gap that can't withstand high pressure. Using the wrong seal type for specific fluid temperatures also leads to premature failure and costly operational downtime.
Can I reuse hydraulic fittings after they have been disconnected?
You shouldn't reuse most hydraulic fittings, particularly flared or bite-type versions, because the metal-to-metal seal deforms during the first installation to create a tight bond. Reusing these components increases the risk of a high-pressure blowout by 45% compared to new parts. Always replace the O-rings if you're working with O-ring face seal fittings to ensure a reliable performance.
What is a Dash Size and how do I calculate it?
A Dash Size represents the internal diameter of a fitting or hose in sixteenths of an inch. To calculate it, measure the diameter in inches and multiply that number by 16. For example, a 1/2 inch hose is expressed as a -8 Dash Size. Mastering this measurement is a critical step when you're learning how to choose hydraulic fittings for your specific machinery.
Why is an O-Ring Face Seal (ORFS) considered better for high-vibration systems?
ORFS fittings are superior for high-vibration environments because the elastomeric O-ring absorbs mechanical shocks that would normally loosen a metal-to-metal seal. These fittings maintain a leak-free connection even in systems vibrating at 60 Hz or higher. This design significantly reduces maintenance requirements and prevents fluid loss in heavy-duty construction equipment across the Kingdom.
What material is best for hydraulic fittings in corrosive environments?
Stainless steel 316 is the most effective material for fittings used in the corrosive, salty air of Saudi Arabia's coastal regions. It offers 3 times the corrosion resistance of standard carbon steel, which can show signs of rust in just 72 hours of salt spray exposure. Choosing high-grade materials ensures your hydraulic systems remain durable and safe during long-term outdoor operations.
How much pressure can a standard JIC fitting handle?
A standard 1/4 inch JIC fitting typically supports operating pressures up to 5,000 PSI, which is roughly 345 bar. It's important to remember that pressure ratings decrease as the fitting size increases. A 1 inch JIC fitting might only be rated for 2,500 PSI, so you must verify the specific rating for every component size in your hydraulic circuit.
