A Practical Guide to Custom Hydraulic Power Unit Design

In the demanding industrial landscape of Saudi Arabia, a one-size-fits-all Hydraulic Power Unit (HPU) is often a direct path to inefficiency, compromised performance, and costly operational downtime. When an off-the-shelf unit fails to meet your precise spatial or performance requirements, your entire system suffers. The solution is not a compromise; it is a precision-engineered system built exclusively for your application. This is where the strategic advantage of a professional custom hydraulic power unit design process becomes essential for guaranteeing reliability and maximizing productivity.

This practical guide delivers the expert insights you need to navigate the end-to-end engineering process. We will walk you through every critical stage, from defining your exact operational specifications to selecting high-performance components that ensure system longevity. You will learn how to commission an HPU that is perfectly matched to your application, designed to improve energy efficiency, and engineered to provide the reliable performance that keeps your operations moving forward without interruption.

Why Choose a Custom HPU Over a Standard Off-the-Shelf Unit?

While standard hydraulic power units (HPUs) serve general purposes, they are rarely the optimal solution for specialized industrial operations. In the demanding environments found across Saudi Arabia, a generic HPU often results in compromises-sacrificing efficiency, performance, or valuable floor space. Opting for a custom hydraulic power unit design is a strategic decision that moves beyond a one-size-fits-all approach, delivering a solution engineered specifically for your application's unique challenges.

The initial investment for a custom HPU may be higher than a standard unit, with costs in Saudi Riyal (SAR) reflecting the detailed engineering involved. However, the total cost of ownership is substantially lower. A tailored solution delivers long-term value through reduced energy bills, lower maintenance requirements, and the elimination of costly downtime, making it a wise investment in your operational productivity and profitability.

Performance and Precision

A custom HPU ensures every component is perfectly matched to your machinery's requirements, moving beyond the generic specifications of standard units. This level of customization optimizes the core principles of hydraulic machinery to guarantee peak performance. We precisely engineer the unit to meet your exact needs for:

• Flow and Pressure: Delivered as needed to eliminate energy waste from oversized units or performance lag from undersized ones.
• Duty Cycle: Built to withstand your specific operational intensity and duration without premature wear.
• Control Systems: Integration of specialized valving and sensors provides the accuracy essential for modern automation.

Space Optimization and Footprint

In many industrial facilities, space is a premium. Standard HPUs with their fixed dimensions can create significant layout challenges. A custom-built unit is designed to fit perfectly within your existing footprint, whether on a crowded factory floor or integrated into compact mobile equipment. Our engineers can design unique reservoir shapes, consolidate components, and fabricate frames that overcome any spatial constraints, ensuring a clean and efficient installation.

System Integration and Efficiency

A solution based on a custom hydraulic power unit design is engineered not just to work, but to work seamlessly with your entire operation. This includes flawless integration with existing electrical panels and control systems (PLCs). More importantly, we select high-efficiency motors and pumps tailored to your load profile, significantly reducing long-term energy consumption. For operations in Saudi Arabia's demanding climate, we also optimize heat dissipation systems to ensure reliable performance and prevent overheating.

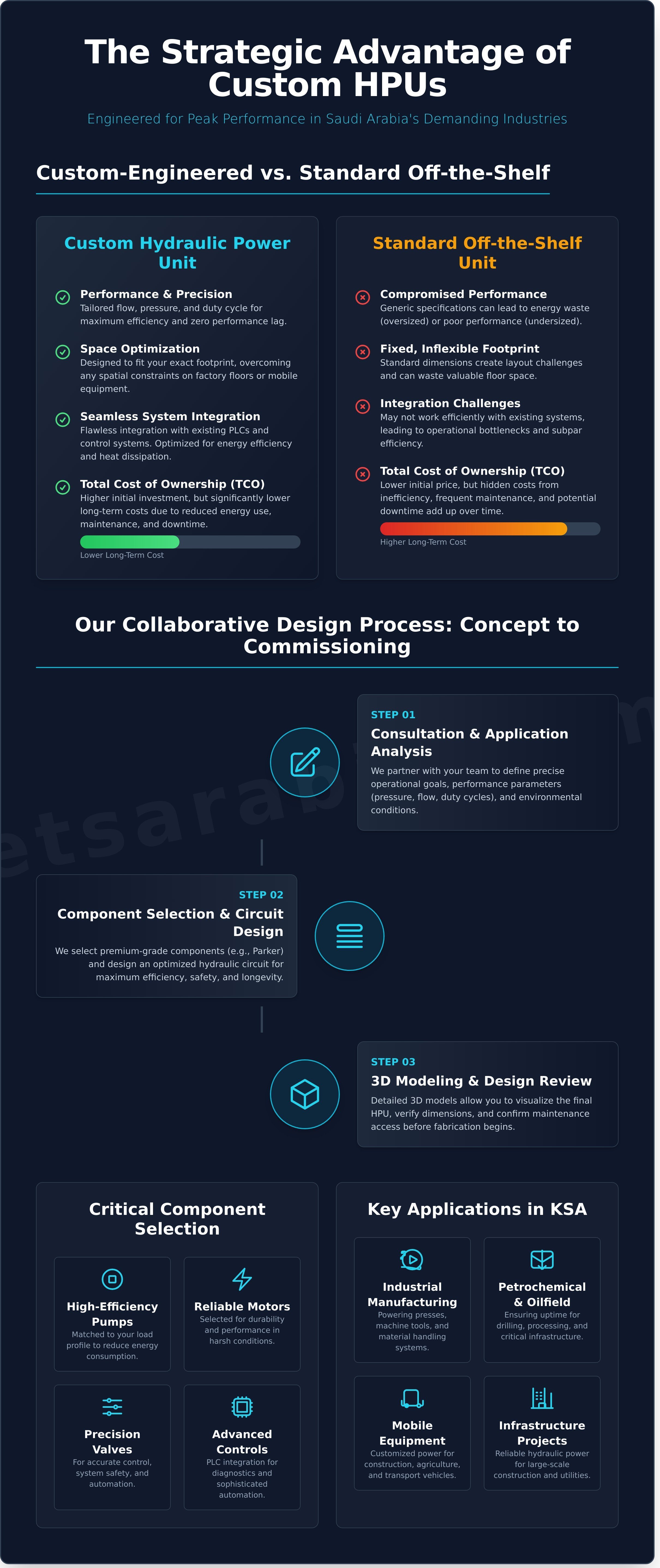

The ETS Design Process: From Concept to Commissioning

A high-performance hydraulic power unit begins with a meticulous, collaborative process. At ETS, our approach to custom hydraulic power unit design is built on a foundation of partnership, merging your invaluable operational knowledge with our deep engineering expertise. This structured methodology ensures clarity, efficiency, and predictable outcomes, delivering a solution that precisely matches your application's demands. Every stage, from the initial sketch to final testing, is managed in-house at our state-of-the-art Dammam facility, guaranteeing quality control and streamlined communication.

Step 1: Initial Consultation and Application Analysis

Our process starts with a detailed consultation to fully understand your operational goals, challenges, and the specific environment in which the HPU will operate. We work with your team to define critical performance parameters, including required pressure and flow rates, expected duty cycles, and ambient conditions. This foundational step also involves clarifying control requirements, whether you need a simple manual valve system or a fully automated solution with PLC integration for advanced diagnostics and control.

Step 2: Component Selection and Circuit Design

With a clear understanding of your needs, our engineers select premium-grade components from globally trusted manufacturers like Parker. We then design a hydraulic circuit optimized for maximum efficiency, minimal energy loss, and reliable performance. This phase prioritizes system longevity by specifying the correct filtration, cooling systems, and reservoir capacities. Our circuit design adheres to stringent international standards, such as the OSHA Hydraulic Safety Regulations, to ensure operational safety and reliability.

Step 3: 3D Modeling and Design Review

To eliminate uncertainty and ensure a perfect fit, we create detailed 3D models of the proposed HPU. These models allow your team to visualize the final product, verify its dimensions, and confirm service access points before fabrication begins. We conduct a thorough design review with your stakeholders to gather feedback and secure approval. Once finalized, we produce a complete bill of materials and detailed fabrication drawings, paving the way for a seamless manufacturing process. Ready to see your concept take shape? Start your HPU design consultation with our experts today.

Critical Components in a Custom Hydraulic Power Unit Design

A successful custom hydraulic power unit design is more than a collection of parts; it is a precisely engineered system where every component contributes to a specific operational goal. The right combination of high-quality components ensures the reliability, efficiency, and serviceability demanded by Saudi Arabia's industrial sector. At ETS, we balance robust performance with long-term durability, providing a solution that minimizes downtime. Understanding these core parts empowers you to make informed decisions for your application.

The Prime Mover: Electric Motors and Engines

The prime mover is the initial source of power. We meticulously size the motor based on the required hydraulic horsepower and overall system efficiency. Depending on your facility's infrastructure and location, we select from reliable AC electric motors (common for fixed industrial use), versatile DC motors for mobile equipment, or powerful diesel engines for remote field operations where grid power is unavailable. Critical factors like voltage, phase, and environmental protection (IP rating) are specified to guarantee performance in harsh conditions.

The Heart of the System: Hydraulic Pumps

The hydraulic pump converts mechanical energy into fluid flow, acting as the heart of the HPU. The choice between gear, vane, or piston pumps depends entirely on your application's pressure, flow, and precision requirements. We match the pump's displacement and pressure rating to your exact needs, ensuring optimal performance without wasted energy. For applications requiring variable output, we often recommend variable displacement pumps to significantly enhance energy efficiency and reduce long-term operational costs.

Control and Direction: Valves and Manifolds

Precision control is achieved through a carefully selected array of valves. Directional, pressure, and flow control valves work in concert to manage your system's every move. To enhance reliability, we often engineer custom manifolds that consolidate valve functions into a single block. This expert approach reduces potential leak points, simplifies plumbing, and creates a more compact, serviceable unit. All our designs adhere to rigorous industry best practices, including National Fluid Power Association standards, to ensure safety and interoperability.

The Foundation: Reservoir and Conditioning Components

The reservoir is more than a tank; it is a critical component for fluid storage, heat dissipation, and contamination control. We size it to manage thermal loads effectively, particularly in the demanding Saudi climate. To protect your investment and ensure fluid health, every unit is equipped with high-efficiency filtration, sealed breathers to block contaminants like dust and sand, and clear level/temperature gauges. For high-demand applications, we integrate robust heat exchangers to maintain optimal operating temperatures and extend component life. For expert guidance on component selection for your needs, contact our engineering team at etsarabia.com.

Applications: Custom HPUs in Saudi Arabia's Core Industries

In Saudi Arabia's most demanding industrial environments-where operational failure can lead to significant financial loss and safety risks-standard equipment often falls short. Reliability is paramount. That is why we engineer custom HPUs built to withstand the unique challenges of the region, from the extreme ambient heat of the desert to the corrosive coastal air of the Gulf. Our deep experience spans the Kingdom's core sectors, providing a clear demonstration of how a tailored custom hydraulic power unit design solves real-world problems and minimizes costly downtime.

Oil & Gas Operations

From remote oilfields to complex offshore platforms, our HPUs provide the steadfast power required for critical tasks. We engineer systems to operate drilling equipment, wellhead controls, and pipeline tensioners with unwavering reliability. For these hazardous environments, we integrate certified explosion-proof components (ATEX/IECEx) and build high-durability units designed for continuous, 24/7 operation, guaranteeing performance where it matters most.

Manufacturing and Industrial Plants

In the Kingdom's growing manufacturing sector, precision and efficiency drive profitability. Our HPUs are the core power source for hydraulic presses, CNC machine tools, and automated material handling systems. We focus on designs that deliver consistent, high-cycle performance for applications demanding exceptional accuracy. Furthermore, we integrate energy-efficient components and smart controls to significantly reduce factory operating costs and enhance your facility's overall productivity.

Marine and Offshore

The marine environment of the Arabian Gulf presents a unique set of challenges requiring robust engineering. Our HPUs are designed to power deck cranes, heavy-duty winches, and responsive steering systems on vessels and offshore rigs. To combat saltwater corrosion, we utilize 316 stainless steel components and specialized marine-grade coatings. Our expertise in custom hydraulic power unit design allows us to create compact, high-power-density units that integrate seamlessly into the strict space constraints of marine applications without sacrificing performance or safety.

Across these diverse and challenging sectors, the common requirement is a solution precisely engineered for the application. Our commitment is to move beyond one-size-fits-all products and deliver hydraulic power that is reliable, efficient, and built to last in the Kingdom's unique industrial landscape. See how our solutions support Saudi Arabia's industries.

Your Partner for Precision-Engineered Hydraulic Power

In Saudi Arabia's demanding industrial landscape, standard solutions often fall short. As we've detailed, choosing a purpose-built HPU over an off-the-shelf model provides unmatched efficiency, reliability, and a greater return on investment. The key to success lies in a meticulous design process that aligns premium components with your specific operational requirements, ensuring optimal performance and minimizing costly downtime.

At Emdad Technical Services (ETS), we provide expert, end-to-end service for your custom hydraulic power unit design. Our local engineering team in Dammam combines in-depth regional knowledge with components from leading global brands to manage everything from initial concept and fabrication to installation and long-term repair. We are your dedicated partner, committed to delivering reliable solutions that enhance productivity.

Ready to power your operations with a hydraulic system built for peak performance? Request a consultation with our HPU specialists today and let us engineer a solution that keeps your business moving forward.

Frequently Asked Questions

What information do I need to provide to start a custom HPU design?

To begin your custom hydraulic power unit design, our engineering team requires key operational parameters. This includes your required flow rate (LPM) and maximum operating pressure (bar), the type of prime mover (e.g., electric motor or diesel engine), and the necessary reservoir capacity. We also need to understand the application's duty cycle and the specific environmental conditions at your facility in Saudi Arabia to ensure optimal performance and longevity.

How long does the custom design and fabrication process typically take?

The timeline for design and fabrication varies based on complexity and component availability. A straightforward design may take 4-6 weeks from initial consultation to final testing. More complex systems requiring specialized components or extensive engineering can take 8-12 weeks or longer. We provide a detailed project schedule after the initial design consultation, ensuring you have a clear timeline to minimize any potential operational downtime and plan your project integration effectively.

Can you design an HPU to integrate with my existing control system?

Yes, seamless integration is a core part of our design philosophy. Our engineers are experts at interfacing our custom HPUs with your existing control architecture, whether it involves PLCs, SCADA systems, or proprietary controllers. We ensure the electrical interface, communication protocols, and sensor feedback are fully compatible with your current setup. This guarantees a smooth commissioning process and unified control over your entire industrial operation, enhancing system efficiency.

What is the cost difference between a custom and a standard HPU?

A custom HPU typically has a higher initial investment compared to a standard unit. The final cost, which can range from ﷼30,000 SAR for simpler units to over ﷼250,000 SAR for complex systems, depends on component specifications, control complexity, and material requirements. However, a custom solution provides superior efficiency and enhanced reliability, often leading to a lower total cost of ownership by reducing energy consumption and future maintenance needs.

Do you provide installation and maintenance services for the HPUs you build?

Absolutely. Our commitment extends beyond fabrication. Emdad Technical Services provides comprehensive on-site installation and commissioning services across Saudi Arabia to ensure your HPU operates perfectly from day one. We also offer tailored preventative maintenance programs and prompt repair services to maximize your system's lifespan and reliability. Our goal is to be your long-term partner, ensuring your operations are always moving forward with minimal interruption.

Are your hydraulic power units certified for use in hazardous environments?

Yes, we specialize in designing and building HPUs certified for hazardous locations, which is critical for many industries in Saudi Arabia, including oil and gas. Our units can be engineered to comply with standards such as ATEX and IECEx for explosive atmospheres. We utilize explosion-proof motors and certified enclosures to ensure your custom hydraulic power unit design meets all required safety regulations for your specific Zone classification, guaranteeing safe and reliable operation.
